 Post subject: Re: Interfacing MUSE A-Mode 3+1 and B-Mode with modern equip
PostPosted: 31 Dec 2015, 15:47
Young Padawan
Young Padawan
User avatar

Joined: 16 May 2009, 18:05
Posts: 3564
Location: California, USA
Has thanked: 26 times
Been thanked: 312 times
Center/surround output on the msc-4000 is in deed the problem. I don't know of a practical box to separate them. The trouble with spdif or aes/ebu is its a two channel digital data stream. You can separate the using glue logic(like 5 of them) or use an cpld. I am not good at xilinx coding, maybe using logic chips is easier. You need to separate center and surround.

I believe all this is done in the msc-4000 already. I do see logic chips from the two sony digital audio interface transmitters. Those transmit two stereo streams therefore the logic chips are probably there to separate center and surround. Then there are 3 akm single bit dacs. Some of these components are ancient I can't find any datasheet. It would really help if we had a service manual. Msc-4000 might even be upsampling before the dacs. If indeed separated single path is in there, it would be soldering of 9 skinny wires, 3 cs8402 chips, and a few caps and resistors really. There is enough room right below the power cord in the back of the msc-4000. You can drill 3 xlr outputs there.
_________________
Coming Soon
Derman Labs
Anything Of Substance
Offline
 Profile

 Post subject: Re: Interfacing MUSE A-Mode 3+1 and B-Mode with modern equip
PostPosted: 06 Oct 2016, 15:08
Young Padawan
Young Padawan
User avatar

Joined: 16 May 2009, 18:05
Posts: 3564
Location: California, USA
Has thanked: 26 times
Been thanked: 312 times
Ok another interesting discovery. Trinnov Attitude processors allow their 4 coax (or optical) used simultaneously for up to 7.1ch input. One could feed the two digital coax outputs from the Sony MsC-4000 and alike to Trinnov Attitude's 2 digital coax. You can then map for 3+1 ch input. Trinnov allows the sound to be upmixed up to 32ch in any configuration you want.

What's the catch? Trinnov Attitude costs $25,000 in its base configuration and can go upwards of $35,000 if you want all 32ch Dolby Atmos processing.
_________________
Coming Soon
Derman Labs
Anything Of Substance
Offline
 Profile

 Post subject: Re: Interfacing MUSE A-Mode 3+1 and B-Mode with modern equip
PostPosted: 06 Oct 2016, 16:16
Advanced fan
Advanced fan
User avatar

Joined: 05 Jul 2011, 15:10
Posts: 898
Location: Norway
Has thanked: 0 time
Been thanked: 5 times
substance wrote:
What's the catch? Trinnov Attitude costs $25,000 in its base configuration and can go upwards of $35,000 if you want all 32ch Dolby Atmos processing.

Guess I'll be selling a kidney!

Anyhow, a nice discovery. At least it exists something that can actually use those outputs. Always been puzzled by those...
_________________
Player: Pioneer HLD-X9 and CLD-2950
My LD collection
Recently started collecting some anime on LD
Offline
 Profile

 Post subject: Re: Interfacing MUSE A-Mode 3+1 and B-Mode with modern equip
PostPosted: 10 Jul 2020, 17:57
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 555
Location: United States
Has thanked: 2 times
Been thanked: 76 times

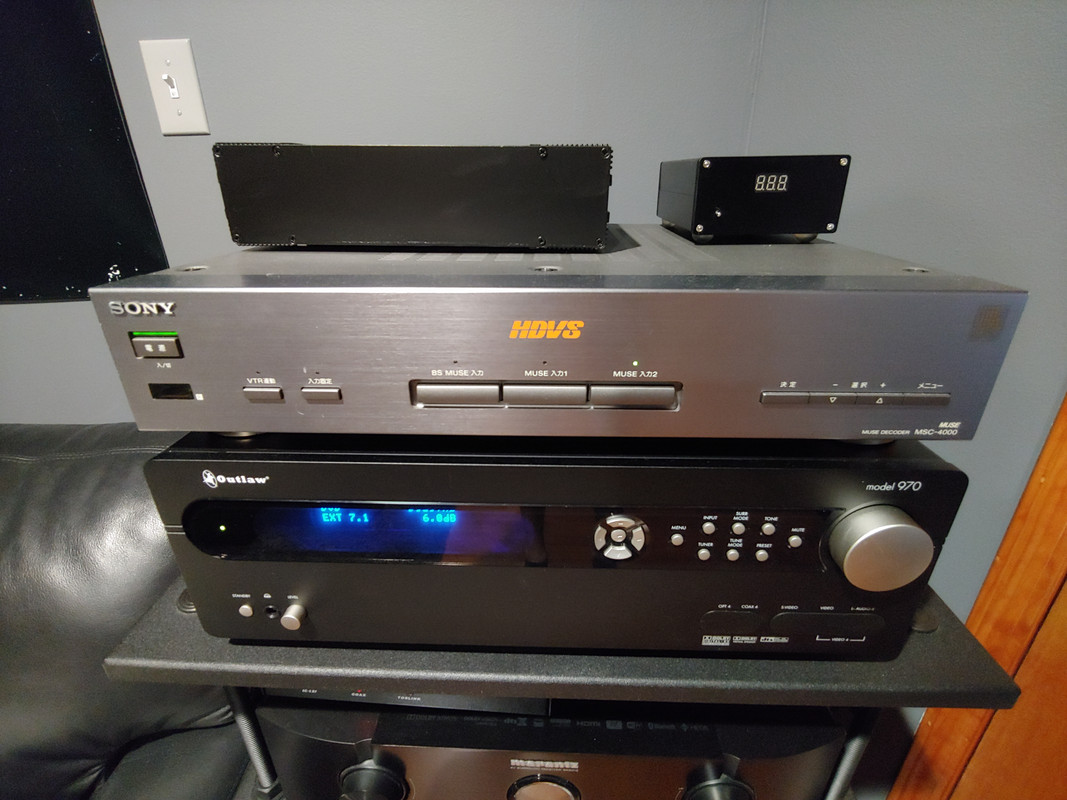

I found something interesting, Outlaw Model 970 preamp, it takes the Muse 3+1 inputs in and does digital bass management (creates a .1 LFE channel and applies all crossovers I set).

The other useful thing is it can input / output component video from a Muse decoder so you can make sure the A/V stays in sync.

I have been using this for all of my LD audio and am very pleased (still need an exterior AC3 demod) especially at the price they are going for on eBay.

https://outlawaudio.com/products/970.html


_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: Interfacing MUSE A-Mode 3+1 and B-Mode with modern equip
PostPosted: 28 Aug 2022, 09:34
Site Admin
Site Admin
User avatar

Joined: 07 Aug 2002, 23:37
Posts: 4539
Location: Tokyo
Has thanked: 291 times
Been thanked: 1134 times
publius wrote:
There are some beautiful Burr-Brown DACs on the audio board, although I need to look up the part numbers for more detail.


Can't say for the Sony MSC-3000 but I just opened a Sony MSC-4000 today and, as mentioned before by substance, these are AKM => AKM AK4319VM.

Finally found a scan of the paper Datasheet on a Polish website!

https://manuals.lddb.com/DACs/AKM/AK4319.pdf

Not super exciting, they were also used in mid-range 90's Pioneer A/V amps.
Maybe they had few choices of DACs dealing natively with 48kHz at the time, they are not even using SONY's.

Attachment:
MSC-4000.jpg [ 168.45 KiB | Viewed 1235 times ]

Attachment:
MSC-4000 DACs.jpg
MSC-4000 DACs.jpg [ 151.08 KiB | Viewed 1235 times ]


As discussed with substance recently, maybe using the 2 digital Coax out for 3+1 on 2 external stereo DACs could be an option.

As in:

  • MSC-4000 > Coax 1 to DAC #1 > Multi-ch in L + R
  • MSC-4000 > Coax 2 to DAC #2 > Multi-ch in C + SRD L/R (Y-split?)

To re-create a 5ch output via better DACs.

Julien
_________________
HARDWARE DATABASE
HLD-X0/9 LD-S9 OPPO 105/205 SL-1200G
LDD-1 MSC-4000 R2144 PONTUS II C45 MC257
