 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 17:41
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 553
Location: United States
Has thanked: 2 times
Been thanked: 73 times
audioboyz1973 wrote:
Do you have a display with SDI input?

I currently have no device with SDI input.

Thinking that we'd all need some kind of SDI-HDMI convertor at some point to be able to implement this.

If you are set up for capture I'd think most devices can capture from a non-hdcp hdmi source (though honestly with no capture experience just winging it there). Perhaps just disclosure about what was used to convert to HDMI? The recommended Blackmagic might be ideal as it could be the most common option of any adopters, however just a good representation with disclosure regarding the SDI-HDMI conversion should be very adequate and obviously far better than nothing.

The truth is nothing does anything perfectly.


I am getting the feeling that the whole Kramer "test" this person did was an advertisement for this device all along. The eval / 2144 / Kramer are all near perfect and somehow this thing has bested all of them? Color me skeptical.
_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 17:57
Advanced fan
Advanced fan
User avatar

Joined: 16 Jun 2015, 15:40
Posts: 824
Location: Australia
Has thanked: 105 times
Been thanked: 95 times
audioboyz1973 wrote:
I currently have no device with SDI input.

Oops, you reminded that I have a CII
_________________
Looking for Hi-Vision Discs (MUSE or HDVS).......
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 18:13
Genuinely interested
Genuinely interested
User avatar

Joined: 29 Jan 2004, 12:40
Posts: 55
Location: Switzerland
Has thanked: 3 times
Been thanked: 6 times
pbiancardi wrote:

I am getting the feeling that the whole Kramer "test" this person did was an advertisement for this device all along. The eval / 2144 / Kramer are all near perfect and somehow this thing has bested all of them? Color me skeptical.



Are you kidding me?


I'm interested in a good 3D Y/C solution.

read on this board about the Eval board.

by the time I read it, there was no chance for me to get one.

Someone else posted about the Kramer unit, bought one two weeks ago

looked at 3 different units , gave my findings, that's it.

why would I buy a Kramer unit if I would advertise for something that I bought

before?

why jump to conclusions that make no sense?
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 18:17
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 553
Location: United States
Has thanked: 2 times
Been thanked: 73 times
nidi wrote:
pbiancardi wrote:

I am getting the feeling that the whole Kramer "test" this person did was an advertisement for this device all along. The eval / 2144 / Kramer are all near perfect and somehow this thing has bested all of them? Color me skeptical.



Are you kidding me?


I'm interested in a good 3D Y/C solution.

read on this board about the Eval board.

by the time I read it, there was no chance for me to get one.

Someone else posted about the Kramer unit, bought one two weeks ago

looked at 3 different units , gave my findings, that's it.

why would I buy a Kramer unit if I would advertise for something that I bought

before?

why jump to conclusions that make no sense?


As someone who has seen 2144, Eval, Kramer, and X0 comb filters all I am saying is I am skeptical.
_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 19:52
Genuinely interested
Genuinely interested
User avatar

Joined: 29 Jan 2004, 12:40
Posts: 55
Location: Switzerland
Has thanked: 3 times
Been thanked: 6 times
pbiancardi wrote:

As someone who has seen 2144, Eval, Kramer, and X0 comb filters all I am saying is I am skeptical.



well, you have basically seen 2 kind of filters, as 3 of the above mentioned ones are the same chipset.

skeptical? come on...
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 15 Oct 2021, 22:22
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 553
Location: United States
Has thanked: 2 times
Been thanked: 73 times
nidi wrote:
pbiancardi wrote:

As someone who has seen 2144, Eval, Kramer, and X0 comb filters all I am saying is I am skeptical.



well, you have basically seen 2 kind of filters, as 3 of the above mentioned ones are the same chipset.

skeptical? come on...


Ok I'll be more specific, the fact that you think the X0 comb filter is better than the 7842 in the Kramer makes me extremely skeptical of your opinion.
_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 16 Oct 2021, 12:22
Honest fan
Honest fan
User avatar

Joined: 30 May 2007, 09:44
Posts: 74
Location: Australia
Has thanked: 0 time
Been thanked: 0 time
carrboroman wrote:
thanks guys, the "usual suspects" as expected, great to see you are interested... looks like the lddb.com FPGA team is born!

I'm gonna check with Daniel if he has a player for testing... any advice on the model? I guess the point is not having the best composite to begin with to see how much it can improve the output?

What kind of tests/patterns/movies should we consider the bar? i.e., my concern is about frame rate and possible LD-specific quirks, like resolution or cadence etc..

What I gathered so far, is that the SM03 accepts NTSC/PAL or SECAM inputs, which it decodes using a 3D comb filter, it provides video noise reduction, resynchronizes the video to a stable output and provides contrast enhancement (histogram equalization). The output is SDI without upscaling or deinterlacing, but it's based on previous broadcasters projects for BBC and RAI, so the strong point are decoding and noise reduction.


Am I too late to join? I know Verilog is superseded by SystemVerilog but VHDL stays quite the same. The analog part is always fascinating!
_________________
HLD-X0 | SONY MSC-4000 | HDQ | What else? answer: Fix that EAD T-8000 (not the Terminator)
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 14 Nov 2021, 02:53
Knows how to post
Knows how to post
User avatar

Joined: 29 Jun 2021, 02:34
Posts: 9
Location: United States
Has thanked: 0 time
Been thanked: 0 time
nidi wrote:
from the early DVD days, I used SDI as an output, was/is so much better than what component was/is capable of.

started with the Crystalio 1 , went up to the Chtystaio II then the Radiance XS+

bought a Blackmagic Terranex SDI to HDMI converter, which I haven't used yet.

was hoping to use an external capture device , like the Blackmagic Design Video Assist 3G.

am hoping to find someone who could tell if it's worth it.


You would need BlackMagic UltraStudio SDI to USB 3.0 capture device to capture lossless AVI 4:2:2 720x480 (720x576 PAL/SECAM), Similar PCI card is available for desktops.

https://www.ebay.com/itm/224660912503?h ... SwMQdhde-T
or:
https://www.ebay.com/itm/324839509020?h ... SwEFlhbu5m
_________________
https://www.youtube.com/user/latoak34/videos
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 20 Dec 2021, 18:57
Genuinely interested
Genuinely interested
User avatar

Joined: 29 Jan 2004, 12:40
Posts: 55
Location: Switzerland
Has thanked: 3 times
Been thanked: 6 times
dellsam34 wrote:
nidi wrote:
from the early DVD days, I used SDI as an output, was/is so much better than what component was/is capable of.

started with the Crystalio 1 , went up to the Chtystaio II then the Radiance XS+

bought a Blackmagic Terranex SDI to HDMI converter, which I haven't used yet.

was hoping to use an external capture device , like the Blackmagic Design Video Assist 3G.

am hoping to find someone who could tell if it's worth it.


You would need BlackMagic UltraStudio SDI to USB 3.0 capture device to capture lossless AVI 4:2:2 720x480 (720x576 PAL/SECAM), Similar PCI card is available for desktops.


Thanks Dellsam34,

I'm looking for a non PC solution. Direct hardware recording.

there seem to be such solutions in the movie industry

SDI to ProRes SD
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 08 Apr 2022, 20:05
Young Padawan
Young Padawan
User avatar

Joined: 30 Aug 2005, 15:38
Posts: 3381
Location: Pennsylvania
Has thanked: 64 times
Been thanked: 130 times
So is this device on the market yet or still in the testing phase?
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 10 Apr 2022, 05:44
Genuinely interested
Genuinely interested
User avatar

Joined: 29 Jan 2004, 12:40
Posts: 55
Location: Switzerland
Has thanked: 3 times
Been thanked: 6 times
elahrairrah wrote:
So is this device on the market yet or still in the testing phase?



still testing phase.
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 04 Sep 2022, 07:01
Third post and above
Third post and above
User avatar

Joined: 21 Jan 2021, 12:30
Posts: 5
Location: United Kingdom
Has thanked: 1 time
Been thanked: 8 times
Hello everyone,

Sorry to not contributing to this thread for a while. Here is an update.

We are now shipping the SM03 as we have frozen the feature list after much feedback from some early customers. Here is a summary of the product:

Three basic functions: 3D comb filter decoder, 3D noise reduction and full frame synchoniser.
NTSC/PAL input (CVBS or Y/C), SDI output. (Y/C input uses dual ADCs.)
Stereo audio with programmable delay (compensate lip-sync) embedded into SDI output.
Can lock to almost all VHS tape sources.
Chroma edge enhancement.
Full proc-amp features (gain, offset etc.) including NTSC chroma vector rotation (hue correction).

Despite efforts, we cannot reduce the price, especially with the worldwide component shortages, but we can offer a 'bundled' package with the Magewell image capture cards if you are archiving (and the pound is tanking so if you are outside the UK that will help lower the price to you).
We despatch using DHL with full tracking information.
We also include a programmer with every SM03 so any future features/bug fixes can be updated.
The SM03 includes Y/C to BNC cables, universal power supply and phono to BNC adaptor.

https://www.singmai.com/Modules/sm03.html

We welcome continued feedback and are still open to any missing features you would like to see, but we will limit any updates to once very six months or so.

Daniel.
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 03 Oct 2022, 16:53
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 553
Location: United States
Has thanked: 2 times
Been thanked: 73 times
singmai wrote:
Hello everyone,

Sorry to not contributing to this thread for a while. Here is an update.

We are now shipping the SM03 as we have frozen the feature list after much feedback from some early customers. Here is a summary of the product:

Three basic functions: 3D comb filter decoder, 3D noise reduction and full frame synchoniser.
NTSC/PAL input (CVBS or Y/C), SDI output. (Y/C input uses dual ADCs.)
Stereo audio with programmable delay (compensate lip-sync) embedded into SDI output.
Can lock to almost all VHS tape sources.
Chroma edge enhancement.
Full proc-amp features (gain, offset etc.) including NTSC chroma vector rotation (hue correction).

Despite efforts, we cannot reduce the price, especially with the worldwide component shortages, but we can offer a 'bundled' package with the Magewell image capture cards if you are archiving (and the pound is tanking so if you are outside the UK that will help lower the price to you).
We despatch using DHL with full tracking information.
We also include a programmer with every SM03 so any future features/bug fixes can be updated.
The SM03 includes Y/C to BNC cables, universal power supply and phono to BNC adaptor.

https://www.singmai.com/Modules/sm03.html

We welcome continued feedback and are still open to any missing features you would like to see, but we will limit any updates to once very six months or so.

Daniel.


Can you explain why is this cutting off the top of the picture? https://www.youtube.com/watch?v=Q9jx6D86J-s

The Lumagen 2144, Kramer 773, and ADV7842 Eval Board all do something similar and I am trying to understand why?

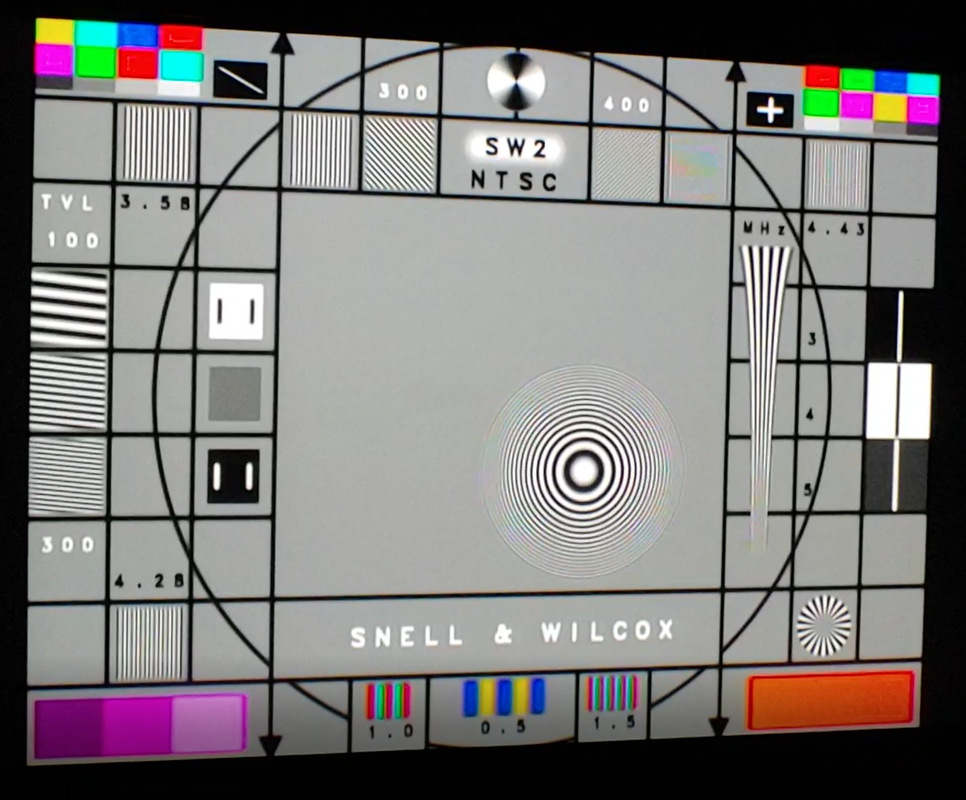

Forgive the cell phone garbage pic but you can see what I mean - yours is cutting off the picture at the top?


_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 04 Oct 2022, 02:27
Serious fan
Serious fan
User avatar

Joined: 02 Jan 2021, 00:35
Posts: 197
Location: Northern Virginia
Has thanked: 120 times
Been thanked: 110 times
If it's happening with other devices, do you have any it doesn't happen with? Also, are you sure the display isn't cutting off the overscan area? I've had a TV that always does that with 480p input.
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 04 Oct 2022, 11:41
Advanced fan
Advanced fan
User avatar

Joined: 11 Oct 2015, 16:35
Posts: 553
Location: United States
Has thanked: 2 times
Been thanked: 73 times
rcarlson wrote:
If it's happening with other devices, do you have any it doesn't happen with? Also, are you sure the display isn't cutting off the overscan area? I've had a TV that always does that with 480p input.


I have done some close inspection with a Kramer 773 (ADV7842) and a Onkyo TX-NR809 (ADV7844) and it is really difficult to tell if the image is being shifted in the frame or if the top section is being cut off. I can say also that Lumagen 2144 (ADV7800) does this as well.

Here is comparison of Kramer and Onkyo - https://screenshotcomparison.com/comparison/28154

Here is Kramer vs SingMai - https://screenshotcomparison.com/comparison/28166

Looks to me like SingMai is 100% cutting off the picture (I have no idea if they have something in line cutting this off or not).

I had always assumed this was a comb filter issue since all of the ADV7800 / 7842 devices do it but I cannot be sure.
_________________
Sony HIL-C2EX w/ AC3
Sony HIL-C1 w/ AC3
Sony MDP-999
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 05 Nov 2022, 02:07
Knows how to post
Knows how to post
User avatar

Joined: 22 Aug 2003, 14:40
Posts: 13
Location: Sweden
Has thanked: 0 time
Been thanked: 0 time
singmai wrote:
Hello everyone,

Sorry to not contributing to this thread for a while. Here is an update.

We are now shipping the SM03 as we have frozen the feature list after much feedback from some early customers. Here is a summary of the product:

Three basic functions: 3D comb filter decoder, 3D noise reduction and full frame synchoniser.
NTSC/PAL input (CVBS or Y/C), SDI output. (Y/C input uses dual ADCs.)
Stereo audio with programmable delay (compensate lip-sync) embedded into SDI output.
Can lock to almost all VHS tape sources.
Chroma edge enhancement.
Full proc-amp features (gain, offset etc.) including NTSC chroma vector rotation (hue correction).

Despite efforts, we cannot reduce the price, especially with the worldwide component shortages, but we can offer a 'bundled' package with the Magewell image capture cards if you are archiving (and the pound is tanking so if you are outside the UK that will help lower the price to you).
We despatch using DHL with full tracking information.
We also include a programmer with every SM03 so any future features/bug fixes can be updated.
The SM03 includes Y/C to BNC cables, universal power supply and phono to BNC adaptor.

https://www.singmai.com/Modules/sm03.html

We welcome continued feedback and are still open to any missing features you would like to see, but we will limit any updates to once very six months or so.

Daniel.


Would this work good for improving the vhs, betamax and video 2000 image if one want to watch it on a SD PAL tv? And any suggestion for a great SDI to RGB (preferably scart) equipment?
Offline
 Profile

 Post subject: Re: SingMai FPGA external 3D comb filter
PostPosted: 23 Jan 2023, 08:22
Third post and above
Third post and above
User avatar

Joined: 21 Jan 2021, 12:30
Posts: 5
Location: United Kingdom
Has thanked: 1 time
Been thanked: 8 times
Hello,

I have introduced a cut down (and less expensive) version of the SM03. It is called the SM15 and costs £295.
It still has the 3D comb filter, Y/C inputs, and synchroniser, but the noise reduction, procamp, chroma enhancement and VCR mode have been removed (it does still lock to laserdisc including pause/feature modes). Details are available here: https://www.singmai.com/Modules/sm15.html

Comments are welcome, as always.
Offline
 Profile

Display posts from previous:  Sort by
 Page 4 of 4 [ 77 posts ]  Go to page Previous  1, 2, 3, 4


Who is online

Users browsing this forum: No registered users and 1 guest


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
