 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 04 Feb 2019, 01:24
Genuinely interested
Genuinely interested
User avatar

Joined: 04 Mar 2013, 02:10
Posts: 54
Location: United Kingdom
Has thanked: 1 time
Been thanked: 0 time
miskia wrote:
here is come pictures:

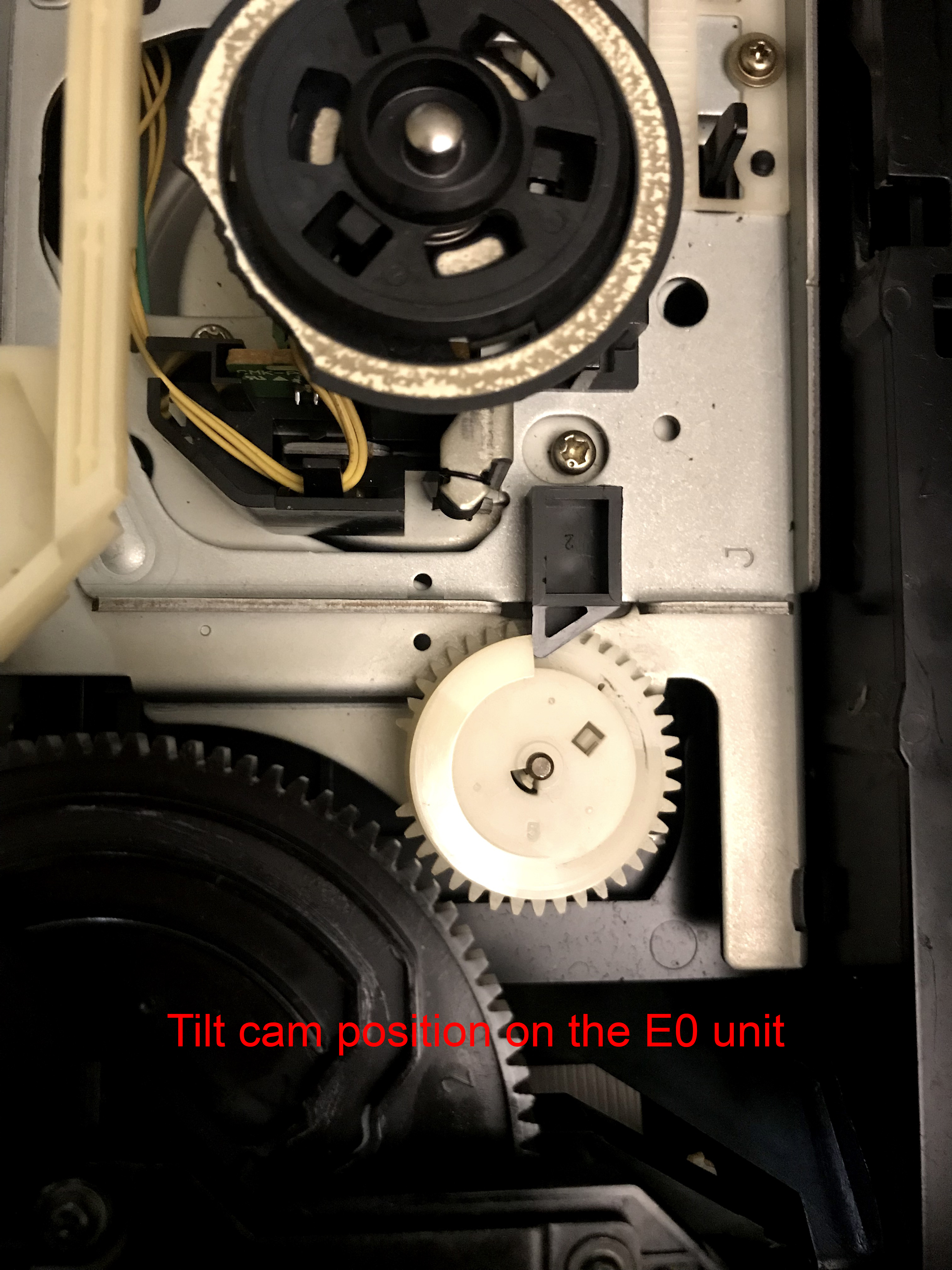

ImageThe tilt cam position on the E0 unit


In this picture it looks like part of the disc clamp is broken off the Spindle Motor. May be unrelated to the problem, then again where did the broken piece end up? Is it stuck somewhere preventing another part from moving?
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 10 Feb 2019, 09:08
Knows how to post
Knows how to post
User avatar

Joined: 02 Aug 2011, 14:37
Posts: 13
Location: Finland
Has thanked: 0 time
Been thanked: 0 time
Did you check the condition of the motor holder(VNL1700)? If it has cracks, gears can skip, as Kurtis pointed out earlier. Weight of the motor is enough to crack the original holder in transit.
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 17 Feb 2019, 08:07
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
Hello,

So I replaced the 4560 & LA6510.
Unfortunately It didn’t solved the problem.

I think that I will try to swap the main assy with one from my working player, like that I’ll know If the problem is coming from the main assy electronic or not.

I checked lot of times the mecanic, for me It’s working greatly that side
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 17 Feb 2019, 16:28
Jedi Master
Jedi Master
User avatar

Joined: 03 May 2004, 19:05
Posts: 5338
Location: United States
Has thanked: 35 times
Been thanked: 74 times
tony426 wrote:
miskia wrote:
here is come pictures:
ImageThe tilt cam position on the E0 unit


In this picture it looks like part of the disc clamp is broken off the Spindle Motor. May be unrelated to the problem, then again where did the broken piece end up? Is it stuck somewhere preventing another part from moving?

Yeah, I don't see this picture in earlier posts but its messed up.
Do you see that the black platter with white ring is cracked?? I can.
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 17 Feb 2019, 20:12
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
rein-o wrote:
tony426 wrote:
miskia wrote:
here is come pictures:
ImageThe tilt cam position on the E0 unit


In this picture it looks like part of the disc clamp is broken off the Spindle Motor. May be unrelated to the problem, then again where did the broken piece end up? Is it stuck somewhere preventing another part from moving?

Yeah, I don't see this picture in earlier posts but its messed up.
Do you see that the black platter with white ring is cracked?? I can.


Yes, sorry I didn't talk about that. I replaced the motor with a working one from a CLD-S315, this thing has been fixed, it didn't solved the problem too :(
And I didn't found the "missing part" anywhere in the drive, so I guess it is not in it anymore. I dismounted the mecanics 2 times for now.
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 17 Feb 2019, 21:36
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
And new information: I tried to swap the main assy with the one coming from a working unit: still E0 !
So I'm sure now that PSU & Main assy are not the cause of the E0 issue...

It must be something I don't see... I'll try to swap the optical bloc with an other one, and check again the laser position switches.
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 21 Feb 2019, 20:45
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
This is totally insane...
I took a working poor CLD-S315 which have lot of "same" parts, to give to this CLD-D925:
- took the motor (you saw the broken part, now it's good)
- took the little pcb with the 2 switchs
- took the big black block (the block which make all the drive going up & down)
- swapped the optical blocks

nothing change !!!
This error is driving me totally crazy
As said before, I also tried to swap the main assy board with the one coming from my working CLD-D925, and it's the same
Now I think I tried everything, what could be the problem??? :( :( :(
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 21 Feb 2019, 21:02
Young Padawan
Young Padawan
User avatar

Joined: 14 Jan 2010, 09:44
Posts: 3246
Location: United States
Has thanked: 31 times
Been thanked: 97 times
Just to clarify, it gets to the point where the motor moves up and clamps the disc but it doesn’t spin at all. Is that correct? Can you hear the high frequency whine of the motor controller?
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 22 Feb 2019, 17:50
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
Actually, if I manually open the tray and power on the drive:
1. The tray closes
2. The loading mechanism is going "up"
3. The carriage assy (optical block) moves to the first endcourse-switch then go back a little
4. E0...

Then to open it again I have to manually turn the gear for the loading mechanism go down, then the tray opens :( :(
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 22 Feb 2019, 22:44
Young Padawan
Young Padawan
User avatar

Joined: 14 Jan 2010, 09:44
Posts: 3246
Location: United States
Has thanked: 31 times
Been thanked: 97 times
So it’s either refusing to move because it doesn’t see a disk or the clamping hasn’t engaged whatever feedback is needed to satisfy the controller.

It’s another machine of course, but when my 99 showed E0 in a similar situation it was because the motor was defective which causes a high current drain and then it shows E0. It still would eject the disc though. With a CD you could give a little help and it would try to spin but it couldn’t reach target RPM.

If you think the disc is fully mounted try to hit Play and spin it a little and see if the motor takes over a little.

I can’t remember if you tried a CD or not. If not, we should be doing that now because CDs mount easier than LDs.

Can you manually move the laser to another position and will it rerun to center when powered up?

Btw, the broken spindle pad is almost certainly caused by human. I can’t see how that would ever happen from use so clearly someone has been in these units before you. :)
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error, cannot solve it :(
PostPosted: 23 Feb 2019, 08:35
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
I told it few messages ago but the motor has been replaced by one coming from a CLD-S315
When I move the laser to another position it rerun to center when I power up the drive, yes

Something I didn't change is the "sensor" on the motor (part named "FG assy")
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error [SOLVED!]  Topic is solved
PostPosted: 17 Mar 2019, 17:12
Shows curiousity
Shows curiousity
User avatar

Joined: 29 Dec 2018, 10:33
Posts: 28
Location: Belgium
Has thanked: 1 time
Been thanked: 4 times
Error solved!

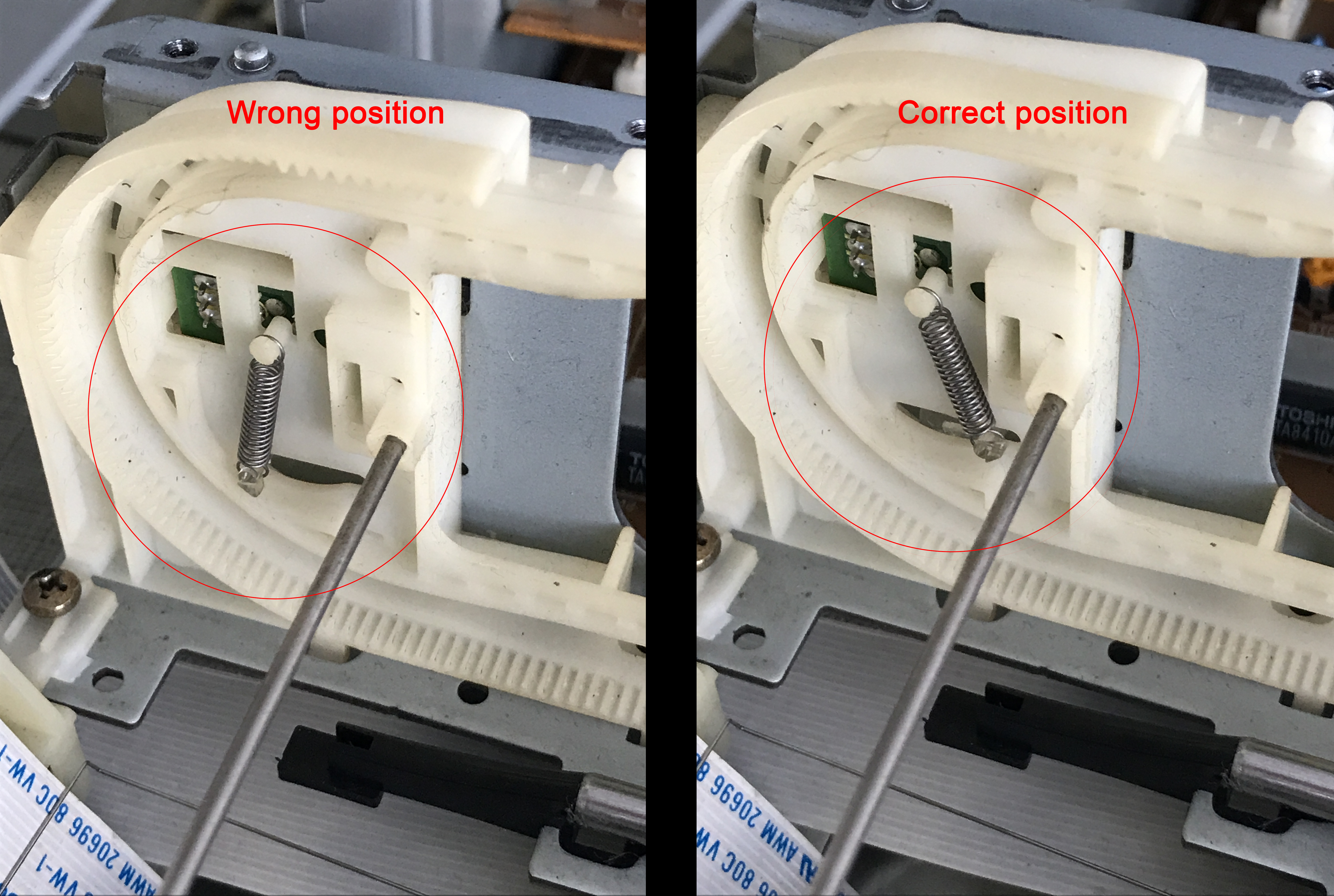

After some time spent today I noticed something... a switch position which was not good (in comparaison with an other D925)...
Here is a little pic


And now it works fine! Finally after some weeks/months opened on my workplan, I can remount it :)
Next step will be alignement, I bought the GGV disc & service remote

Thanks a lot to everybody who helped me :)
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error [SOLVED!]
PostPosted: 17 Mar 2019, 21:51
True fan
True fan
User avatar

Joined: 15 Apr 2012, 10:36
Posts: 483
Location: Norway
Has thanked: 3 times
Been thanked: 4 times
I'm happy for you that you fixed the error. Good luck with the calibration. :)
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error [SOLVED!]
PostPosted: 20 Mar 2019, 18:27
Shows curiousity
Shows curiousity
User avatar

Joined: 19 Dec 2018, 10:20
Posts: 27
Location: France
Has thanked: 4 times
Been thanked: 0 time
bravo !
_________________
Loyalty above else, except Honor.
Offline
 Profile

 Post subject: Re: [CLD-D925] E0 error [SOLVED!]
PostPosted: 20 Mar 2019, 23:06
Young Padawan
Young Padawan
User avatar

Joined: 14 Jan 2010, 09:44
Posts: 3246
Location: United States
Has thanked: 31 times
Been thanked: 97 times
Awesome!
